GOOTU 3KW Solar Inverter With 80A MPPT Solar Charge Controller
₹35,000.00
In stock
SKU
EMAF6486720
Model Number : JSY-O2430E80-W
Input Voltage : 24V
Rated Power : 3000W / 3200VA
Inverter Type : Off Grid Solar Inverter
Max. PV Input : 3000W
Max. Charging Current : 80A
Delivery: 3-4 Working Days
Expected Delivery Date is 27th February, 2025
GOOTU 3KW Solar Inverter With 80A MPPT Solar Charge Controller

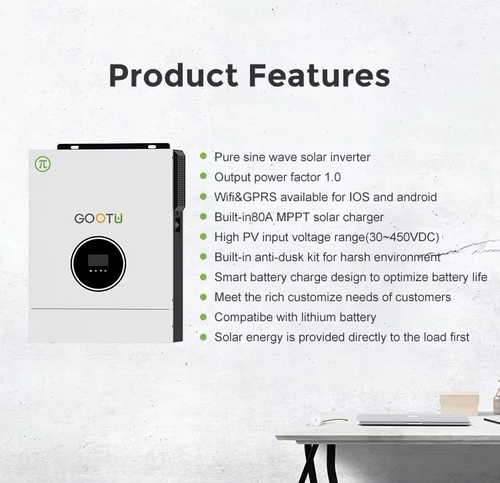

Gootu is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Data Sheet
|
Model
|
|
JSY-O2430E80-W
|
|
Rated Power
|
|
3200VA/3000W
|
|
AC Input
|
|
|
|
Volatage
|
230V AC
|
|
|
Selectable Voltage Range
|
170~280V AC(For Personal Computers)
|
|
|
90~280V AC(For Home Appliances)
|
||
|
Frequency Range
|
50 Hz/60Hz(Auto sensing)
|
|
|
AC OUTPUT
|
|
|
|
AC Voltage Regulation
|
230V AC ±5%
|
|
|
Surge Power
|
|
6400VA
|
|
Efficiency(Peak) PV to INV
|
98%
|
|
|
Efficiency(Peak) Battery to INV
|
94%
|
|
|
Transfer Time
|
10ms (For Personal Computers); 20ms (For Home Appliances)
|
|
|
BATTERY&AC CHARGER
|
|
|
|
Battery Voltage
|
|
24V DC
|
|
Floating Charge Voltage
|
|
27V DC
|
|
Overcharge Protection
|
|
33V DC
|
|
Maximum AC Charge Current
|
|
|
|
SOLAR CHARGER
|
|
|
|
Maximum PV Array Power
|
|
3000W
|
|
MPPT Range @ Operating Voltage
|
30~450V DC
|
|
|
Maximum PV Array Open Circuit Voltage
|
450V DC
|
|
|
Maximum Charging Current
|
80A
|
|
|
PHYSICAL
|
|
|
|
Dimension,D X W X H(mm)
|
357*273*95
|
|
|
Net Weight(kgs)
|
|
5
|
|
Communication Port
|
RS232/WIFI//GPRS
|
|
|
OPERATING ENVIRONMENT
|
|
|
|
Humidity
|
5% to 95% Relative Humidity(Non~condensing)
|
|
|
Operating Temperature
|
-10-50℃
|
|
